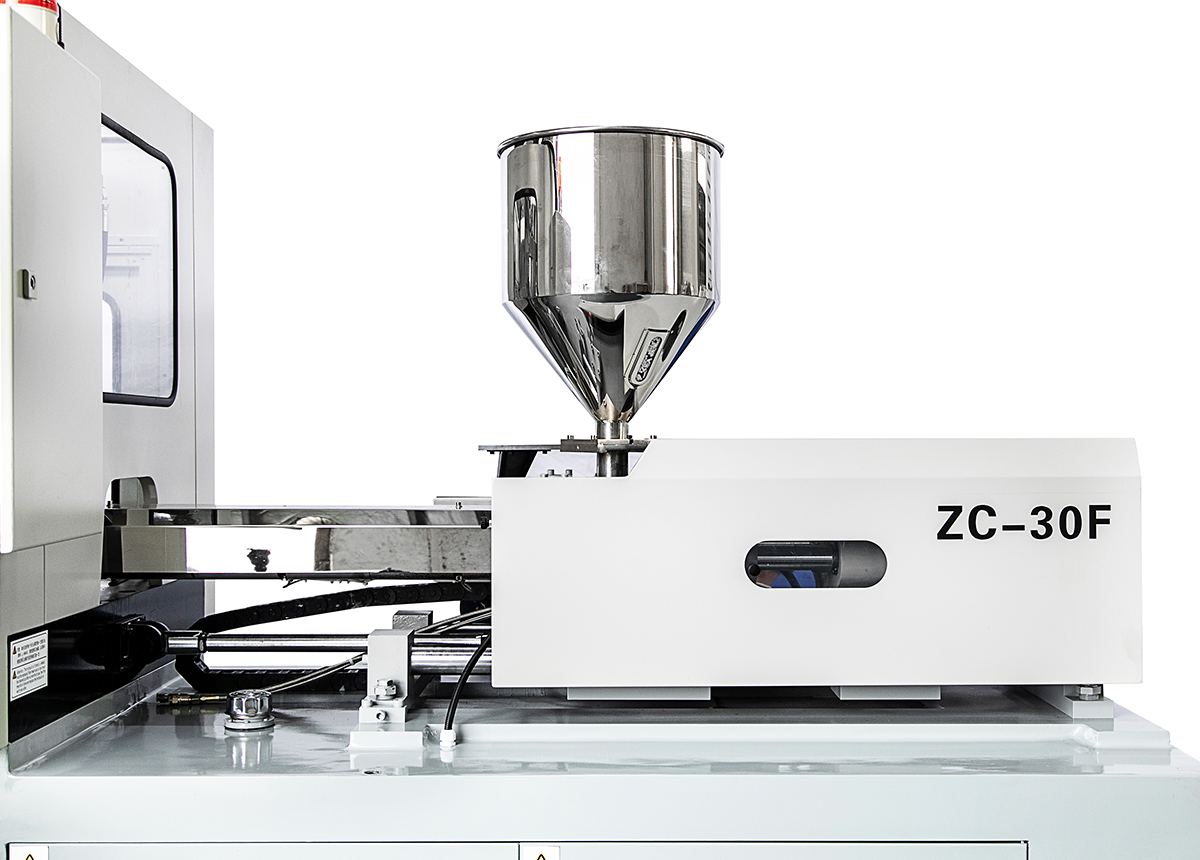

| 序號/NO. | 名稱/ltem | 單位/ Unit | ZC-30F |
| 1 | 螺桿直徑/Dia.of screw | mm | 40 |
| 2 | 螺桿長徑比(L/D) / screw L/D | 26 | |
| 3 | 最大理論注射容量/Max.Injection volume | cm3 | 200 |
| 4 | 注射量(HDPE) / injection capacity | g | 140 |
| 5 | 最大注射壓力/ max.injection pressure | Mpa | 175 |
| 6 | 螺桿最大行程/max. screw stroke | mm | 165 |
| 7 | 螺桿轉速/ screw speed | rpm | 10-260 |
| 8 | 機筒點熱量/ barrel heating capacity | kw | 6 |
| 9 | 電熱控制區 / heating zone | qty | 3 |
| 10 | 合模&吹塑系統/Injection&Blowing | ||
| 11 | 注塑模合模力/clamping force of injection | KN | 300 |
| 12 | 吹塑模合模力/ clamping force of blowing | KN | 80 |
| 13 | 開合模行程/ opening stroke of mould planten | mm | 120 |
| 14 | 回轉臺提升高度/ lifting height of rotary table | mm | 60 |
| 15 | 模具平面尺寸(長*寬)/ max.planten size | 420*300 | |
| 16 | 最小模具厚度/min.mould thickness | mm | 180 |
| 17 | 模具加熱功率/ heating capacity of mold | KW | 1.2-2.5 |
| 18 | 脫模系統/Ejection device | ||
| 19 | 脫模行程/ travel distance of ejection mm 204 | mm | 204 |
| 20 | 驅動系統/Driving system | ||
| 21 | 主電機功率/servo motor capacity | Kw | 11.4 |
| 22 | 液壓系統壓力/ hydraulic pressure | Mpa | 14 |
| 23 | 可成型制品范圍/Product size range | ||
| 24 | 制品容積/Product volume | L | 0.005-0.8 |
| 25 | 制品高度/product diameter range | mm | ≤200 |
| 26 | 制品直徑/product height range | mm | ≤100 |
| 27 | 其他/Others | ||
| 28 | 空循環時間/ dry cycle | s | 3 |
| 29 | 壓縮空氣系統壓力/ discharge rate of compressed air | m3/min | 1.2 |
| 30 | 壓縮空氣排量/ min air pressure | Mpa | >0.8 |
| 31 | 冷卻水流量/ cooling water flowage | m3/h | 3 |
| 32 | 機器外形尺寸/Machine dimension | m | 3.05*1.3*2.15 |
| 33 | 機器重量/Machine net weight | T | |
| 34 | 額定總功率/Total rated power | Kw | 18.5 |
